JUVENTAS

Patient transfer trolley JWZ 02

Product code JWZ02

2298.00€

Juventas Color palette

6 - 8 weeks

Product description

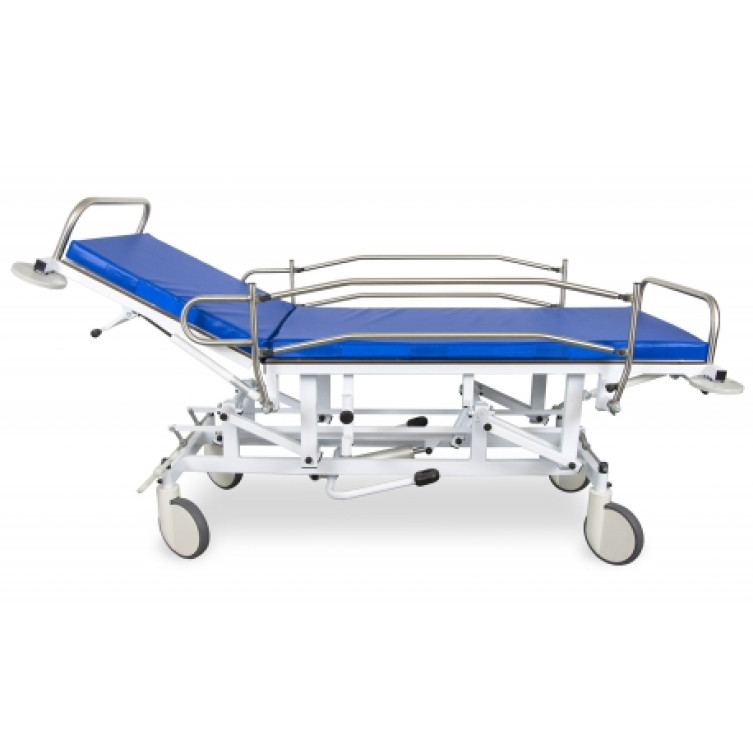

Patient transport trolley "JWZ 02" is intended for transporting patients indoors. The frame is made of steel powder coated with epoxy polyester paint. The height is adjusted with the help of a hydraulic cylinder by pressing the dedicated foot pedals. Pedals are installed on both sides of the stroller. The lying surface is made of HPL board, conductive to X-rays.

The push handles in the head and legs are made of stainless steel, removable. The stroller is equipped with fold-down side handles made of stainless steel. Chassis with four 125 mm diameter wheels, all wheels with brakes.

The back part is adjustable with the help of a gas spring.

Trendelenburg position can be set.

Specification

Length: 212 cm
Width: 85 cm
Height: 57 - 99 cm
Wheel diameter: 12.5 cm
Allowable load: 250 kg
Weight: 76 kg
Head part dimensions: 63x63 cm
Bed dimensions: 130x63 cm
Trendelenburg 0 ° - 10 °
Head rest camps: -25 ° to +60 ° (dujinė spyruoklė)

set

The frame is made of white powder-coated steel
Removable mattress with handles on the sides for more convenient transfer of the patient to the examination or operating table. The color can be chosen from standard colors
The back part is adjustable with the help of a gas spring
Lower stainless steel handrails with latch
X-ray conductive lying surface made of HPL plastic composite, Trendelenburg position can be determined
4 protective rubber bumpers in the corners of the cart
Hydraulic height adjustment with the help of pedals
Wheel system 4 wheels with a diameter of 125 mm, 2 fixed directionally, 2 with brakes
Infusion stand holder
