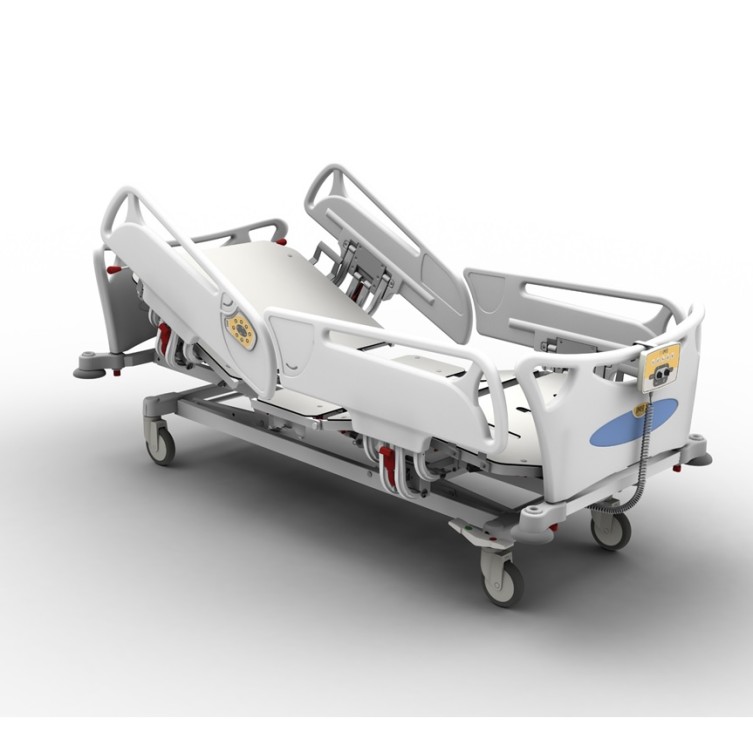

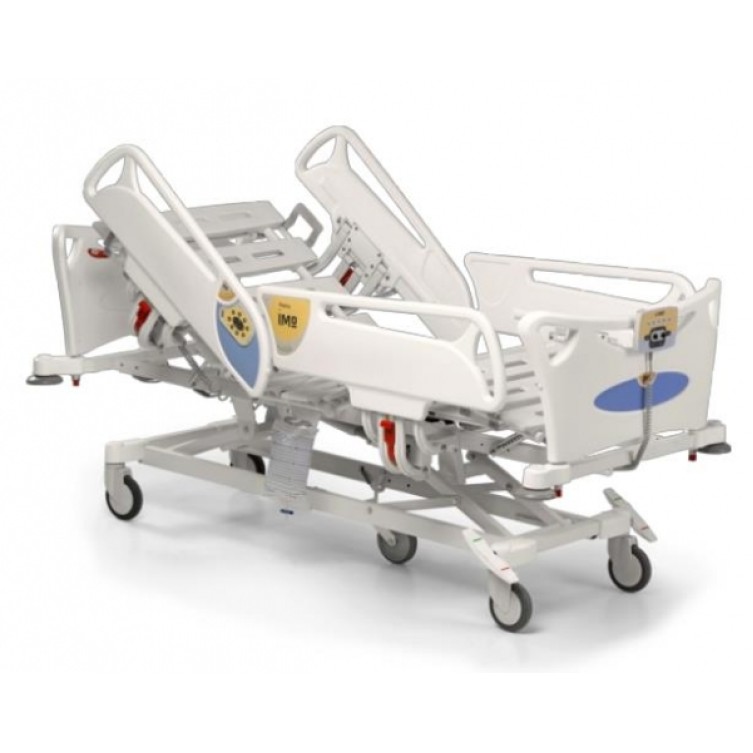

ELECTRICALLY OPERATED FUNCTION BED E30

Product description

• A versatile functional electrically controlled bed for intensive care and intensive care units.
• Steel frame, metal parts with epoxy polymer coating
• Accessory holders at all four corners of the bed (lift handle, infusion stand)
• Corners protected by bumpers made of polyamide 120 mm diameter

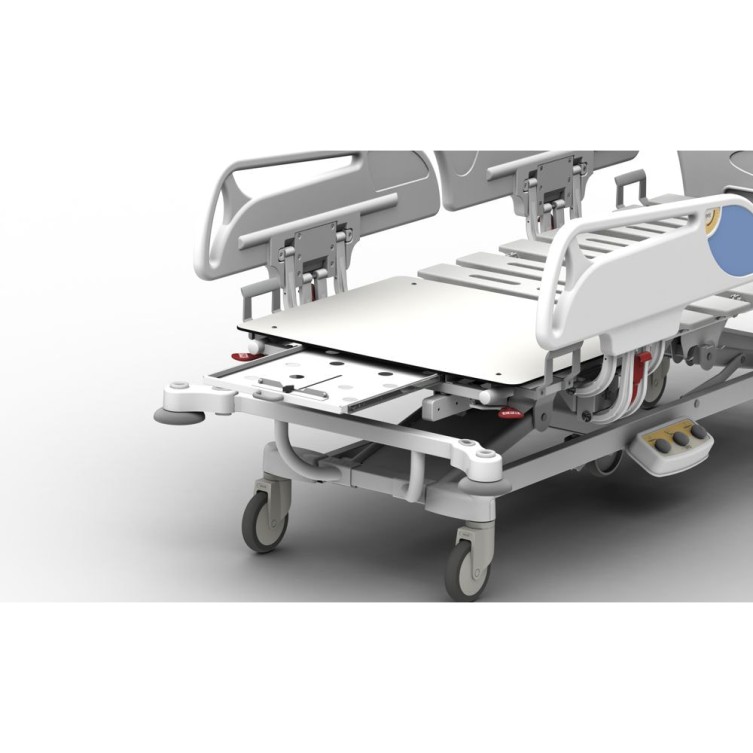

• Four-part mattress surface where the back and leg parts are electrically adjustable. The lower leg part is adjustable by means of a thrust rod. Fixed middle section
• Auto-retraction (autoregress) function in the back section 10 cm
• Reclining surface made of painted steel panel, HPL plastic composite or HDPE plastic removable panels that are easy to clean and maintain, do not rust and can withstand high loads.
• CPR quick-release handles on the back of both sides of the bed
• The headboard and footboard are easily and quickly removable. With safety lock against accidental extraction
• Bed ends made of HDPE plastic. The colour of the bedposts can be chosen from several different shades
• The chassis frame is open, avoiding the accumulation of dust.

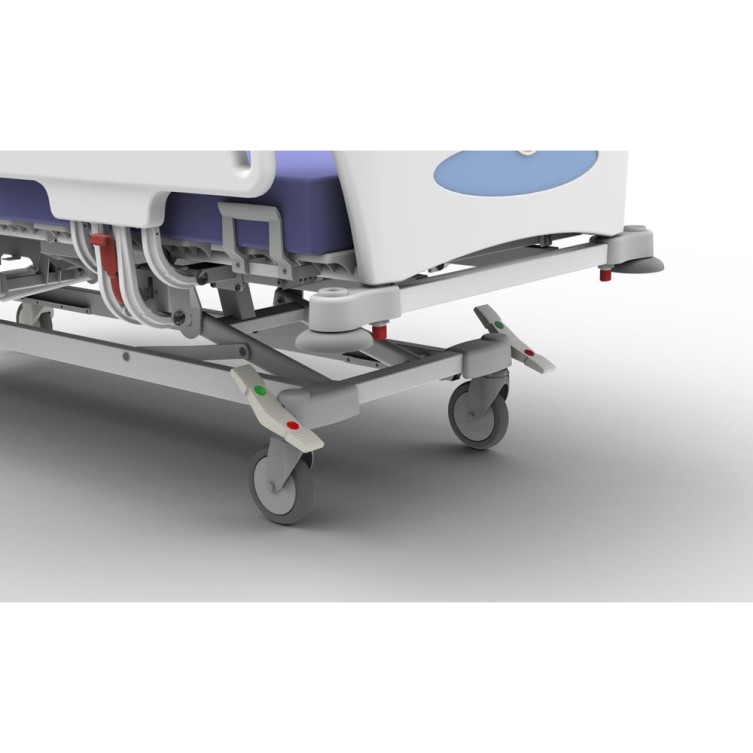

• 150 mm diameter wheels, with central brake. Fifth wheel available for greater manoeuvrability.
• Plastic two-piece side arms across the side of the bed.
• Patient back elevation and trendelenburg tilt angle indicators integrated in the protective side arms
• The bed is controlled by low-voltage motors with IPX4-IP66 protection against liquid leakage.
• Battery to compensate for electrical disturbances 2×1.2 Ah, gel, up to 100 cycles
• Eight-function remote control, with shock-resistant housing, IP protection, flexible cable for controlling the following functions: lifting of the back and leg parts, height adjustment, autocontour positions.
• Caregiver console on the back of the legs with flexible cable. The following functions can be controlled: Auto CPR/sleep position, cardiology chair, resuscitation positions, height adjustment. Lifting and parts adjustment functions can be locked.
• Large selection of optional extras: battery, bed extension, oxygen cylinder holder, monitor holder, writing table, orthopaedic frame, infusion stand, lifting handle, fifth wheel, etc.
