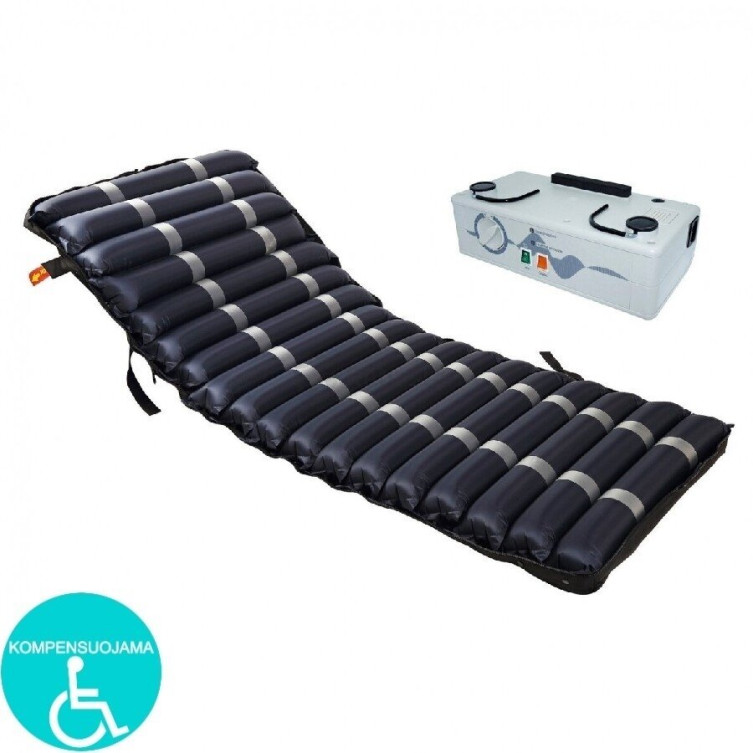

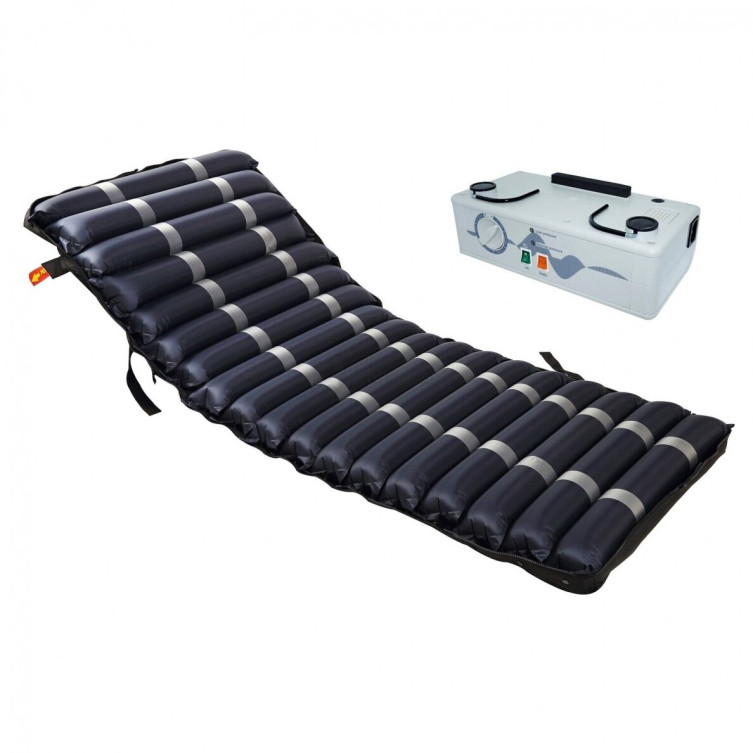

Bed mattress with compressor T05

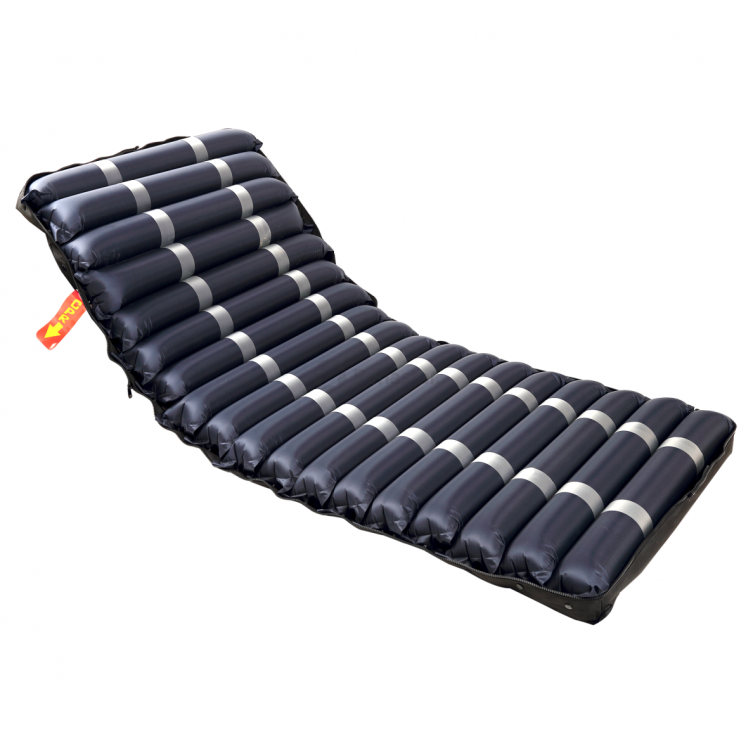

Mattress for the prevention and treatment of bedsores T05 is suitable for patients at risk of bedsores up to level III. The variable pressure mattress consists of 18 cylindrical easily replaceable chambers that are inflated in a variable mode by means of a compressor. Although it is recommended to use this antipragulative mattress system on another mattress base, it can also be used in place of the mattress if the patient feels comfortable and does not touch the bed base with their body.

Suitable for both healthcare and home use. Recommended for patients who spend more than 15 hours in bed. during the day, with little movement in bed and an increased risk of bedsores, or who already have bedsores.

The antipragulant properties of the mattress are ensured by changing the pressure in the mattress chambers (cells) according to the principle b-A-b-A in a set cycle, i.e. by inflating and releasing every second chamber. This stimulates the surface of the skin, ensures greater air circulation on the surface of the skin, makes the skin "breathe" easier, stimulates blood circulation, as a result, reduces the risk of ulceration, and heals skin lesions better.

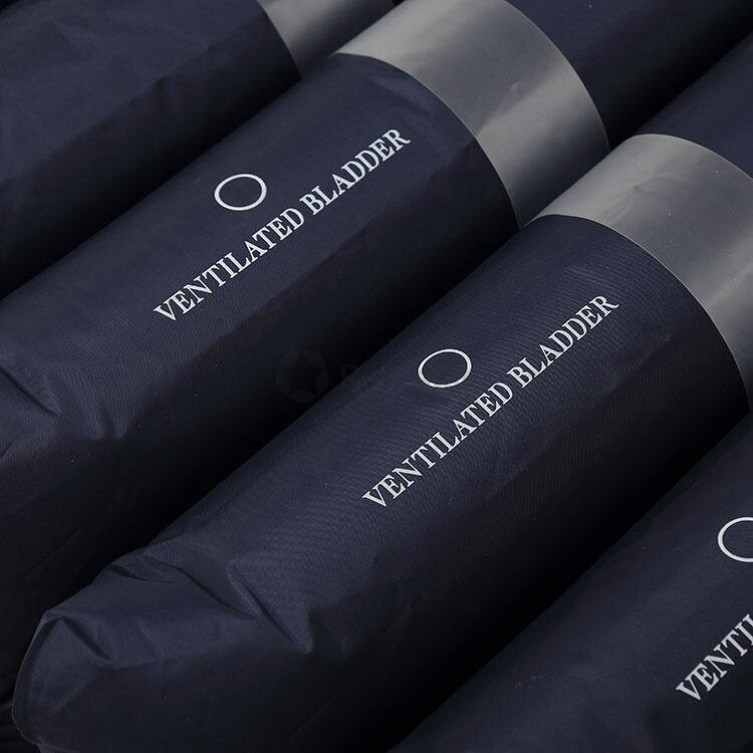

The base of the mattress consists of 18 cells that can be easily removed, replaced in the event of failure, as well as easy to clean and maintain. The chambers are made of high quality nylon with a thermopolyurethane coating. The three chambers in the head section are always inflated and perform the function of a pillow. The 8 chambers at the patient's shoulders and hips have microperforation, which ensures even greater air circulation on the surface of the mattress, as well as better removal of moisture in the most sensitive areas of the patient.

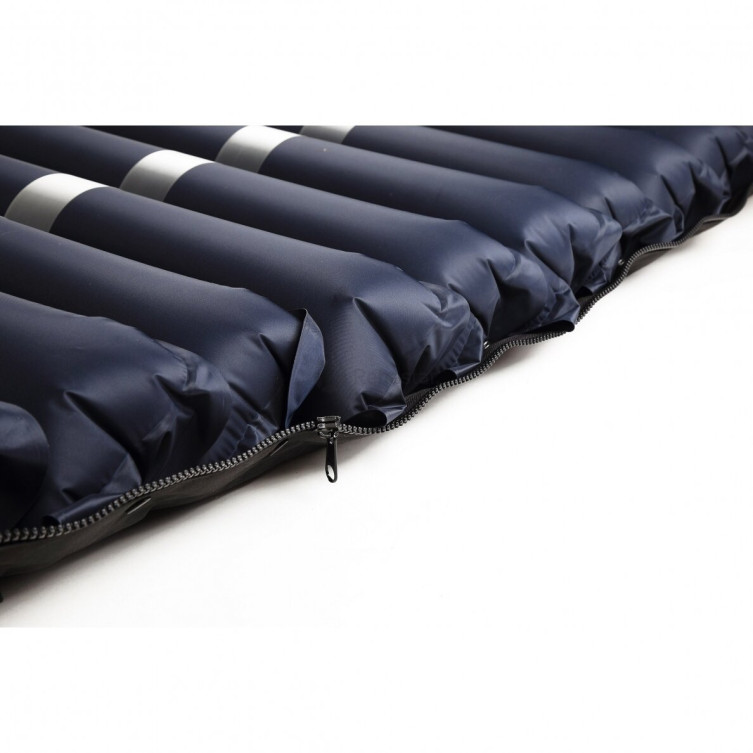

The bed mattress has a moisture- and fire-resistant, air-conducting cover that is resilient in all directions and fastened to the base with a zipper along the entire perimeter of the mattress. The zipper is hidden under a special flap that prevents liquids from entering the mattress. At all four corners, the mattress has special straps for securing the mattress to the bed frame. The cover can be washed and dried in automatic washing and drying machines.

The mattress has a quick release valve CPR that allows quick release of the mattress for emergencies or storage.

The anti-bed mattress system has a transport function. When the mattress is fully inflated, it can be disconnected from the compressor. This way the mattress doesn’t go out for a few hours, e.g. when the patient needs to be transported in bed.

The mattress compressor has hooks on its back so it can be hung securely on the edge or end of the bed.

The compressor has an air pressure regulator. The operating time of the compressor is 12 minutes.

The compressor is extremely quiet, its noise level is up to 20 dB, so it does not irritate the patient. The compressor can operate in variable pressure or static pressure mode, i. inflating all cells with equal pressure or inflating / discharging them every second.

The compressor has a low pressure indicator. If the pressure in the mattress is too low, a warning light on the front of the compressor will illuminate.

The compressor has an audible power failure indicator that turns on in the event of a power failure.

Inflated mattress length 200 cm, width 90 cm, height 12 cm. Suitable for a standard single bed.

The maximum load of the mattress is 150 kg.

Mattress technical parameters:

• Number of cameras (cells): 18 pcs
• Mattress chamber (cell) type: cylindrical.
• Mattress material: chambers - nylon / TPU, cover top - elastic PU, bottom - nylon / PVC
• Mattress fastening: special belts in the corners of the mattress.
• Dimensions of the inflated mattress: length 200 cm, width 90 cm, height 12 cm.
• Quick Release Valve CPR: Yes
• Transport function: available
• Maximum permissible load: 150 kg
• Weight 4.5 kg.
• Included: mattress repair kit and spare camera

Compressor technical parameters:

• With folding hooks for easier hanging on the bed
• Low vibration, extremely quiet, noise ≤ 20dB
• Air flow: 6-8l / min.
• Variable cycle time: 12 min
• Adjustable pressure: 30 mmHg to 80 mmHg.
• Power consumption: 12VA.
• Fuse 1.5A
• Dimensions: 27x13x9 cm,
• Weight: ~ 1.3 kg
